Medium-size UAVs often sit on a tight line: enough payload to do real work, yet every gram and every amp matters. A solid 12S setup gives you the high voltage path that cuts current for the same power, which helps heat and sag and lifts usable minutes. This guide focuses on the seven mistakes that most often drain endurance, then shows quick, field-ready fixes.
What Does 12S (44.4 V Nominal, ~50.4 V Full) Really Change for Your Power Path?
A 12S Li-ion pack strings twelve cells in series. Nominal voltage lands near 44.4 V, while a fresh, full pack sits around 50.4 V. Higher voltage means less current for the same thrust, so you lose less power in wiring and ESC copper. That’s the basic reason a high voltage UAV battery often feels calmer at the end of the leg: less heat, firmer voltage, more usable capacity. Many suppliers present the same capacities across 6S, 7S, and 12S in consistent energy-density series (for example, 275–350 Wh/kg tiers), which lets you size within one family instead of juggling mixed parts.
Key Concepts To Anchor
- Nominal vs. full: nominal is the mid-band during discharge; full is the off-charger upper limit you see before load.
- Current and heat: power equals voltage times current; raise voltage, current drops for the same lift, so wiring and ESCs run cooler.
- Bottlenecks: if motors, props, or ESC ratings are at their ceiling, voltage gains get clipped by protection limits—bench test with your heaviest payload before field use.
Are You Oversizing Capacity or Undersizing C-Rate?
Capacity buys minutes but adds weight. C-rate buys peak thrust headroom but can tempt you into heavier packs than you need. The right pick covers worst-case climb without sag while staying carryable for the frame. Many catalogs publish capacity ladders under each energy-density band—for example, 20 Ah, 25 Ah, 27 Ah, 30 Ah, 33 Ah, 35 Ah, 40 Ah, and even 50–70 Ah variants across 6S/7S/12S/14S—which makes A/B testing simpler.
Red Flags & Fast Fixes
- Too heavy for the frame: if motors land too warm to touch for long, drop one capacity step or switch to the next energy-density tier.
- C-rate below peaks: size C-rate to the steepest climb on a hot day, not cruise.
- Quick bench proof: five minutes on a wattmeter at max payload tells you if burst pulls are clipping ESC limits.
Are You Flying Too Deep Into the Pack?
Deep discharge feels productive until late-flight sag trips alarms and drags the drone home. The fix starts with realistic per-cell warnings and a return-to-land threshold that sits above the “sag cliff.” If you want a long flight time drone battery to feel consistent across seasons, this is the habit that pays back every week.
What To Adjust Today
- Set per-cell warnings with margin: avoid the last sharp drop on the curve.
- Tune return-to-land: add a small buffer for wind shifts and final approach.
- Keep a simple log: note landing voltage under load and ambient temp; you will spot patterns fast.
Are You Charging Hot or With the Wrong Wattage?
Turnaround errors eat life and minutes. A 12S pack in the 22–33 Ah range needs serious wattage at 1 C; many teams charge below that for cycle life and use dual-channel chargers to keep rhythm on survey days. Balance charging, correct current, and a clean upstream DC supply form the core. Company content repeatedly links long cycle life with calmer charge/discharge profiles, citing targets in the 800–1000 cycle range under gentle rates—use that as a mental yardstick when you set currents.
Field-Proven Charging Habits
- Cool-down window: let packs cool before charge; heat stacks and shortens life.
- Wattage and channels: scale charger wattage to your pack size and use dual-channel gear for busy missions.
- Upstream headroom: if your charger takes external DC input, give it more headroom than the sum draw so current stays steady near the top of charge.
Are You Skipping Balance Charging and Letting Cells Drift?
Imbalance grows with heavy cycles and cuts usable capacity near the end of discharge. Balance mode trims drift and protects the weakest cell from hitting the floor first. Blog pieces on safety and BMS control echo this point: protection for over-charge, over-discharge, and temperature is the net, but you still need balance discipline to keep packs tight.
Cell-Health Basics
- Balance cadence: run balance on every full charge if you fly long missions or the log shows deltas creeping up.
- Lead handling: keep balance leads tidy and strain-free; bad contact looks like a “mystery cell.”
- Reading cell delta: if one cell drifts faster, cycle that pack alone and re-check internal resistance before the next field day.
Are You Mixing Old and New Packs or Flying With Tired Harnesses?
Parallel work with packs at different ages drags the new one down and makes logs noisy. Worn connectors and leads add hidden resistance that turns current into heat. Grouping by age and cycle count, then retiring outliers on time, keeps fleets honest. Articles on cycle life stress the cost of early replacements and show why a steady 800-cycle target changes the math on total ownership. If a pack is far off that curve, find out why rather than blaming the route.
Quick Quality Checks
- Group by age: keep sets within a narrow cycle window.
- Track IR: monitor internal resistance; rising IR shortens flight time long before capacity numbers look bad.
- Clean contacts: keep connectors clean and replace chafed leads; small contact loss often mimics a battery fault.
Are Storage Voltage and Temperature Killing Shelf Performance?
Long rests at full charge and hot rooms are a slow leak on capacity. Store at a middle state of charge in a cool, dry place. Use labeled cases and a simple rotation plan.
Simple Storage Rules
- Mid-band storage: avoid weeks at 100% SOC.
- Cool, dry room: humidity and heat accelerate drift.
- Rotation cadence: cycle through inventory so no pack sits forgotten at the back of a shelf.
What Pre-Flight Checks Catch These Mistakes Before Takeoff?
Tie the fixes together with a one-page routine. It takes three minutes and prevents most mid-air surprises. If you ever doubt a pack, ground it for a bench run. That’s cheaper than a long walk to fetch a powerless airframe from a field.
One-Page Checklist
- Voltage and delta: confirm overall voltage and cell spread before arming.
- C-rate margin: compare route peaks to the pack’s continuous spec and your ESC rating.
- Thermal glance: motor and ESC temps from the last flight should sit in a sane band.
- Wiring quick look: plugs seated, leads intact, nothing rubbing a sharp edge.
- Log ready: date, pack ID, cycles, route name; two lines of notes beat memory.
What Tools Help You Fix Problems Fast Without Guesswork?
You do not need a truckload of equipment. A small kit catches most issues and keeps the day moving. If you lack a number, ask support for it—vendors that list clear specs across series and S-counts usually answer technical mail fast through a direct contact page.
Minimal Kit
- Wattmeter: verifies current peaks and charger output.
- IR meter or smart charger readout: tracks internal resistance trends.
- Dual-channel balance charger: keeps rotation steady on survey days.
- Thermal probe: spot-checks motor and pack temperatures after climbs.
- Labels and a pen: cycle counts, dates, notes; low-tech beats guesswork.
Why 12S Is Better Than 6S for Flight Time?
This question comes up in every shop. On medium frames, the usual pattern is clear: for the same power, 12S draws roughly half the current of 6S. Less current means less copper loss, lower heat, and less sag late in the flight. That’s why a high voltage UAV battery often stretches legs when all else matches. If you step within one product family that offers the same capacities across 6S/7S/12S, comparisons stay honest and the mount, harness, and connectors change less.
Proof You Can See
- Bench: same thrust, lower current on 12S.
- Thermal: cooler ESC case temps after long climbs.
- Log: firmer voltage in the last third of the mission.
Introduction to Taixing Shengya Electronic Technology Co., Ltd.?

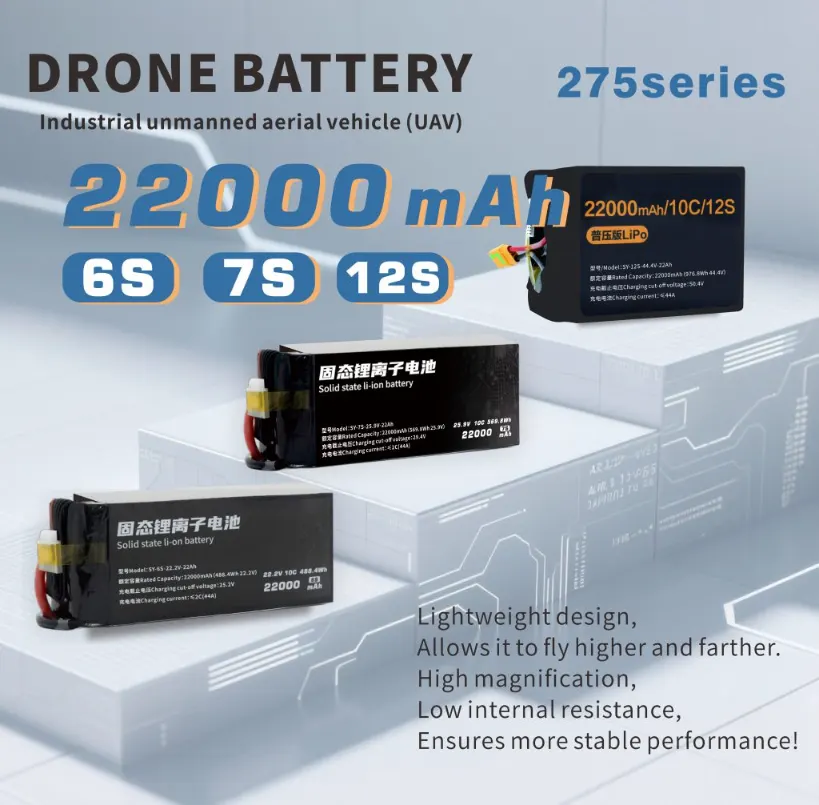

Taixing Shengya Electronic Technology Co., Ltd(SHENGYA) focuses on semi-solid and solid-state lithium-ion soft-pack cells and battery packs with high energy density. Public company pages list multiple series—270, 310, 330, 340, and 350 Wh/kg—and note long cycle life targets around 800–1000 cycles, with packs offered in common combinations such as 6S, 7S, 12S, 13S, and 14S. The product catalog shows clear capacity steps, from compact 10 Ah class all the way to 70 Ah entries, including 12S variants for endurance work. Contact lines include direct mail and phone for technical questions and RFQs.
FAQ
Q1: What Does 12S Mean on a UAV Battery?
A: Twelve cells in series. Nominal voltage is about 44.4 V and full charge reads near 50.4 V. Higher voltage delivers the same power with less current, which helps heat and late-flight sag.
Q2: Why 12S Is Better Than 6S for Flight Time?
A: For the same thrust, 12S draws less current than 6S. That reduces wiring loss and ESC heating, so voltage holds up longer. Many catalogs let you compare equal capacities across 6S/7S/12S to confirm the gain on your own airframe.
Q3: What Charging Setup Works Best for 12S Packs?
A: A balance charger with enough wattage for your capacity, often run below 1 C for life. Dual-channel models help on survey days. Good sources discuss safety circuits and BMS features that protect against over-charge, over-discharge, and high temperature.
Q4: How Do You Store 12S Packs Between Missions?
A: Park at mid-band state of charge in a cool, dry room. Label cycles and rotate stock.
Q5: What Signs Tell You a Pack Should Retire?
A: Rising internal resistance, growing cell imbalance, hotter landings, and shrinking minutes on the same route. Articles on life-cycle economics show why replacing early can be cheaper than nursing a weak pack.
